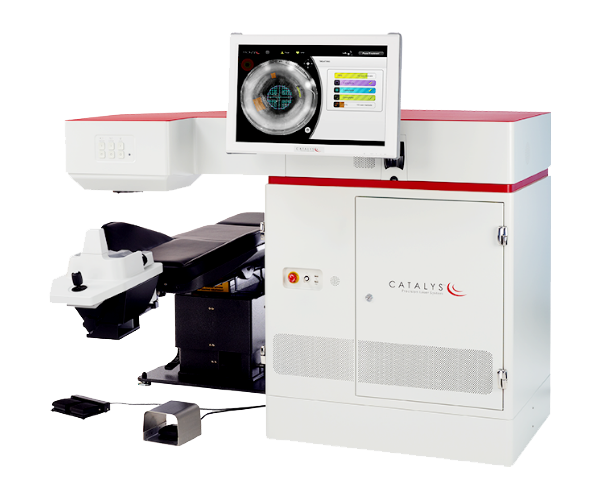

The Catalys Precision Laser System은 백내장 수술을 위해 특별히 설계되었으며 완전한 캡슐 절제술과 우수한 단편화를 제공하는 것으로 나타났습니다. 전체 볼륨, 3D, 고해상도 OCT(광학 간섭 단층 촬영) 이미징 및 통합 안내 기술 및 다양한 맞춤형 옵션이 함께 작동하여 최적의 정밀한 치료를 제공합니다.
Treatment Laser
| Type | Diode pumped solid-state, mode-locked |
|---|---|
| Center wavelength | 1030 (±5nm) |
| Pulse energy | 1 - 10µJ |
| Pulse duration | <600fs |
| Pulse rep. rate | 120kHz ±5%, with integer down sampling when modulated on |
| CDRH laser class (21 CFR 1040) | Class 4 |
Optical
| Numerical aperture | -2 ≥ 0.125 (e ) |
|---|---|
| Scan field, lateral, max | ≥14mm diameter, telecentric |
Video Imaging
| Type | Monochrome CCD |
|---|---|
| Frame rate | >24 frames per second |
| Field of view | 17mm +0/-1mm DIA |
| Illumination | 735nm ±10 nm LED array, variable brightness |
| Optical resolution | <40µm |
OCT
| Type | Spectral domain |
|---|---|
| Center wavelength | 820 – 930nm, CW |
| Resolution, lateral | 15µm or better at focus |
| Resolution, axial | 30µm or better |
| CDRH class (21 CFR 1040) | Class 3R |
| ANSI Z136.1 | Class 1 |
Patient Interface – Aqueous Contact (LIQUID OPTICS Interface)
| Contact element | Sterile buffered saline solution, such as Alcon BSS (Alcon P/N 351/55005-1) or equivalent (not supplied). |
|---|---|
| Inner diameter | 12.0mm (LIQUID OPTICS Interface-12) |
| Fixation method | Annular vacuum flange onto sclera |
| Suction ring seal material | Medical grade silicone elastomer |
| Vacuum pressure | 300 – 700mmHg (gauge) |
Electrical Requirements
| Voltage | 200 – 240 VAC 50/60 Hz single-phase 15A |
|---|
Environmental Requirements (Operating)
| Room condition | 59 – 89.6°F (15 – 32°C) Up to 80% @ 89.6°F (32°C) non-condensing |
|---|---|
| Operating Environment | Temperature controlled environment with temperature controlled to within ±3.6°F (±2°C) |
Environmental Requirements (Non-operating)
| Maximum altitude | Standard commercial shipping altitude |
|---|---|
| Temperature range | 14 – 131°F (-10 – 55°C) |
| Maximum humidity | Up to 80% @ 131°F (55°C) non-condensing |
Physical Characteristics
| Height | 1.15m ±.025m |
|---|---|
| Length | 1.64m ±.025m |
| Width | 0.87m ±.025m |
| Weight | 340kg (750lbs) |
| Optical NOHD | 0m |
| Laser Safety Eyewear | Not required |
IO
| Display | GUI: touch-screen, flat panel |
|---|---|
| Power cable length | ≥8.2 ft (2.5m), detachable |
